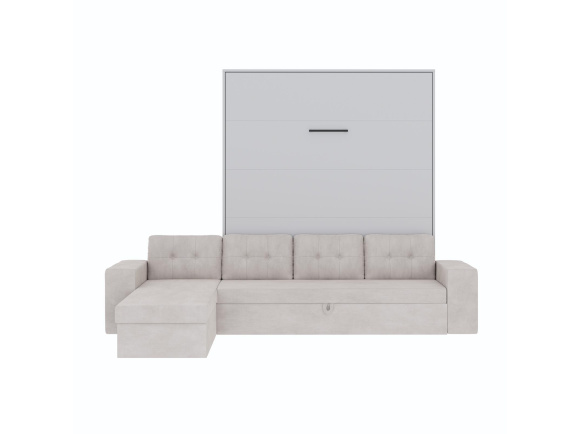

SMARTBett Murphy Bed M3 (Depth 55 cm) Vertical 160x200 incl. L-Shaped Sofa Sand Grey
The SMARTBett Murphy Bed M3 in its vertical version is the ultimate space-saving solution for generous sleeping comfort combined with a modern living landscape. The integrated L-shaped sofa offers maximum comfort and transforms any room from a living area into a bedroom in seconds. Ideal for loft apartments, guest rooms, or as a primary bed in compact living spaces – stable, functional, and aesthetic.
DIMENSIONS: TOTAL COMBINATION
-
Total height: 225.2 cm (+ 1 cm height adjustment)
-
Total width: 293 cm (with 26 cm armrests) | 263 cm (with 11 cm armrests)
-
Depth (Longchair): 213 cm
-
Seat height (Sofa): 41 cm
TECHNICAL DETAILS: MURPHY BED
-
Model Series: M3 – vertical, depth 55 cm
-
Lying surface: 160 x 200 cm
-
Depth (closed): 55 cm
-
Depth (opened): 246.8 cm
-
Swivel height: 257 cm
-
Seat height (Bed): 50 cm
-
Bed edge height: 26.4 cm
-
Load capacity: up to 400 kg (foot area up to 200 kg)
FEATURES & FUNCTIONS
Gas Pressure Springs & Mechanism
High-quality, 2-stage gas pressure springs allow for almost effortless and silent opening and closing of the front. The lifting system used in this model is legally protected under No. W.131958 [WIPO ST 10/ C PL131958U].
Premium Material
The piece of furniture is made of high-quality chipboard (16/22 mm) from the renowned German manufacturer EGGER with a scratch-resistant melamine coating. All components are fully edged; 45° beveled edges effectively protect against dirt and moisture.
Handle & Feet
By simply folding over the metal brackets, robust feet are created. These can be adjusted in height by up to 1 cm to compensate for uneven floors. The handle is made of black metal.
Integrated Shelves
Three permanently installed shelves on the back wall offer practical storage space for books or decorations. When closed, the shelves disappear invisibly inside the cabinet.
Modern look
An upholstered frame in anthracite gives the bed a high-quality look when open.
CORNER SOFA (L-SHAPE) IN SAND GREY
This corner sofa, developed exclusively for the M3 system, represents a specialized solution that optimally combines aesthetics and usability. Lifting mechanism - the seat area lowers gently via a special mechanism using a loop. Removing the seat cushions is not necessary – only the back cushions must be set aside before opening. After closing the front, the seat cushions can be easily returned to the sitting position – also via a loop.
-
Type: 3-seater with lounge element (longchair)
-
Flexibility: The longchair can be mounted on both sides.
-
Storage space: The 65 cm wide lounge element provides space for pillows and blankets.
-
Comfort: High-strength polyurethane foam and durable upholstery fabric.
-
Important Note: The sofa is intended for fixed mounting on the Murphy bed (no free-standing function).
Available Armrest Variants:
-
Narrow armrests (11 cm): Classic slim design for compact spaces.
-
Wide armrests (26 cm): Available as fully upholstered, with drawers, or with storage space under the hinged lid.
MATTRESS RECOMMENDATION
-
Size: 160 x 200 cm
-
Recommended weight: 20 to 40 kg
-
Maximum height: 22 cm
-
Usable depth: 24 cm interior space between the slatted frame and the back wall.
DELIVERY CONDITION & ASSEMBLY
-
Condition: Disassembled and original packaging for self-assembly.
-
Scope of delivery: Murphy bed, integrated slatted frame, 3 click straps for fixation, sofa elements.
-
Note: Price excludes decoration and mattress. Delivery to the curbside.
IMPORTANT SAFETY INSTRUCTIONS
ATTENTION:
The Murphy bed must be securely anchored to a solid/load-bearing wall.
Use is only permitted in a secured state.
Color deviations may occur due to screen settings and lighting conditions.
